This unit plays bluetooth music and call audio using the external CD changer port to communicate with your factory radio. The unit also has a USB port to play music off of a memory stick, a USB adapter for iPhones is also available. This unit also comes with a microphone for phone calls. (a factory fit microphone is also available for purchase below.)
Bluetooth phone calls.
Picks up phone calls by pressing next song on radio and/or steering wheel controls.
Hangs up phone calls/reject calls by pressing previous song button.
Wireless bluetooth music with song up and down controls from radio and/or steering wheel.
Music from a USB stick with folder browsing. USB stick must be formatted to FAT32 and no larger than 64GB.
The USB on the box is only for memory sticks. It will not charge or connect to any other device.
The bluetooth connection pin is 8888, we mention this here because it is hard to find in the owner’s manual.
These products are listed at the bottom of the page.
Dension LIA1GW0 – This adapter converts the round 9 pin connector on the blue box into a USB connection for charging and control of an iPhone.
Posi-Tap EX150B – This product simplifies connecting the ground cable that is required for installation. See product for instructional video.
Enfig RRK4 – keys required to remove the factory radio on some cars.
Enfig MIC-VW1 – Factory fit microphone for better sound quality and a stealth installation. Most cars have this location next to the overhead lights.
Dension CABL-AUX – This adapter converts the round 9 pin connector on the blue box into a male 3.5MM AUX
– This interface connects behind the radio in all the cars below.
– Will NOT disable the CD built into your radio.
– Will disable your externally mounted CD changer or iPod dock because this device pretends to be that device even if you do not have one installed.
– Check the main interface page for all our installation and demo videos. Find it by selecting your car in the header and selecting add to factory radio.
How to insert Mute pin

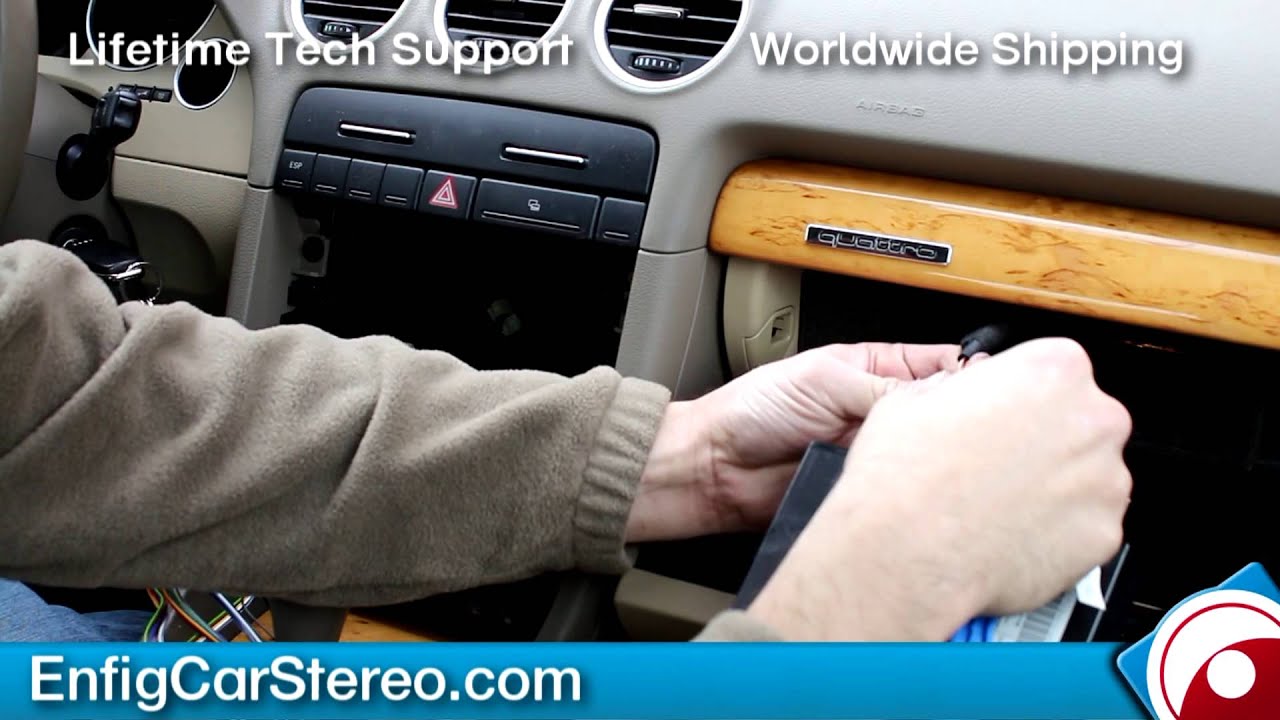

Wiring – This videos is in an Audi but the installation is the same.
