2006-2013 Audi A3

Radio Installation Products



Compatible Cars

A3 2006-2013

*See the bottom if this page for installation and radio removal videos.

Radio package including radio and parts needed for installation.

  • Audi Radio Package

    From: Original price was: $679.99.Current price is: $527.99.

    Our radio package includes your choice of radio and all the parts needed to install that specific radio plus a discount.
    The package includes the radio, radio wiring harness, steering wheel programmer, plug and play converter, AM/FM antenna adapter, radio mounting kit, radio removal keys and microphone housing.
    Just answer the questions below and we will take care of the rest.

Main Radio Wiring Harness




Main Radio wiring harness
  • If your 2006-2007 DID NOT come with RNS-E Navigation  need the SRWH-AUD2-HILO
  • If your 2006-2007 came with RNS-E Navigation you need the SRWH-AUD3-HILO
  • All 2008-2013 need the SRWH-AUD3-HILO

Steering Wheel Control Wire

The harnesses above cannot use your factory steering wheel controls without this wire.  It programs the small box for the radio you are installing.
If you are installing a android radio use the universal one.


Plug and Play Converter

The main harness above has an ISO connector instead of bare wires on the end of them.  The ISO connector can connect into a handful of radios. For the rest of the radios we have this plug and play converter.  On one end It connects to the SRWH above.  On the other end it connects directly into your radio.  Check the google sheet on this products page to see if your radio will connect directly if you will need to buy a converter to do a cut free easy installation.


Radio Mounting Kit

This part hold the radio in place and fills the gaps around the radio for a factory finish.
We do not have a kit for the 2.5″ tall radios.

AM/FM Antenna adapter

The factory antenna in your car is not the same shape as your aftermarket radio.  These adapters convert the shape and power the factory antenna booster.
  • If your 2006-2007 DID NOT come with RNS-E Navigation  need the AAA-VWAUD2
  • If your 2006-2007 came with RNS-E Navigation you need the AAA-VWAUD5
  • All 2008-2013 need the AAA-VWAUD5

Factory Fit Microphone

Custom Factory Fit Microphone

This part is made to fit in your cars factory microphone location.  Not only will you get better sound quality but since it is mounted behind the factory panel you will not have to see an ugly mic hanging off your headliner.

This mic goes into the factory motion sensor that was never used in the united states.


This is the actual factory location mic..  In order to use this mic you have to take the mic out of the plastic housing to run it through the round hole and you have to make a small cut in the overhead console for the wire.  We also sell this with just the housing if you want to break the microphone that came with your radio and use that one instead to save some money.


SiriusXM Antenna Adapter

All 2006-2013 US Audi A3’s have a Sirius XM antenna on the roof.  This wire is connected to the tuner in the trunk.  The SAA-SIR600 is made to connect to the factory Sirius XM antenna cable in the trunk.

All SiriusXM ready radios require this external tuner in order to listen to SirusXM.


GPS Antenna Adapter

All aftermarket radios with GPS or Wireless CarPlay/Android Auto come with an external GPS antenna.
All 2006-2013 Audi A3’s with a factory GPS radio have a factory GPS antenna that you can use with your aftermarket radio using this adapter.

If your US A3 did not have factory navigation the antenna on the roof still has a GPS antenna cable.  The cable is on the Drivers side behind the Sirius tuner.  (See video in videos section)

You will need this extension cable to connect to this cable.


Backup Camera

This camera replaces the handle in your hatch

This harness give you power for this or any camera from the wiring harness behind the radio.  It connects to the main harness above.

  • Enfig SRWH-BUC

    $29.99

    Gives power to a backup camera when using our SRWH main harness




Radio Removal Keys

The Concert II radio needs 2 keys the rest of the radios need 4 keys to be removed.


Panel Pry Tools

These tools come in handy when removing the cars interior trim.


Radios

These are the radios we recommend for your car.


Videos

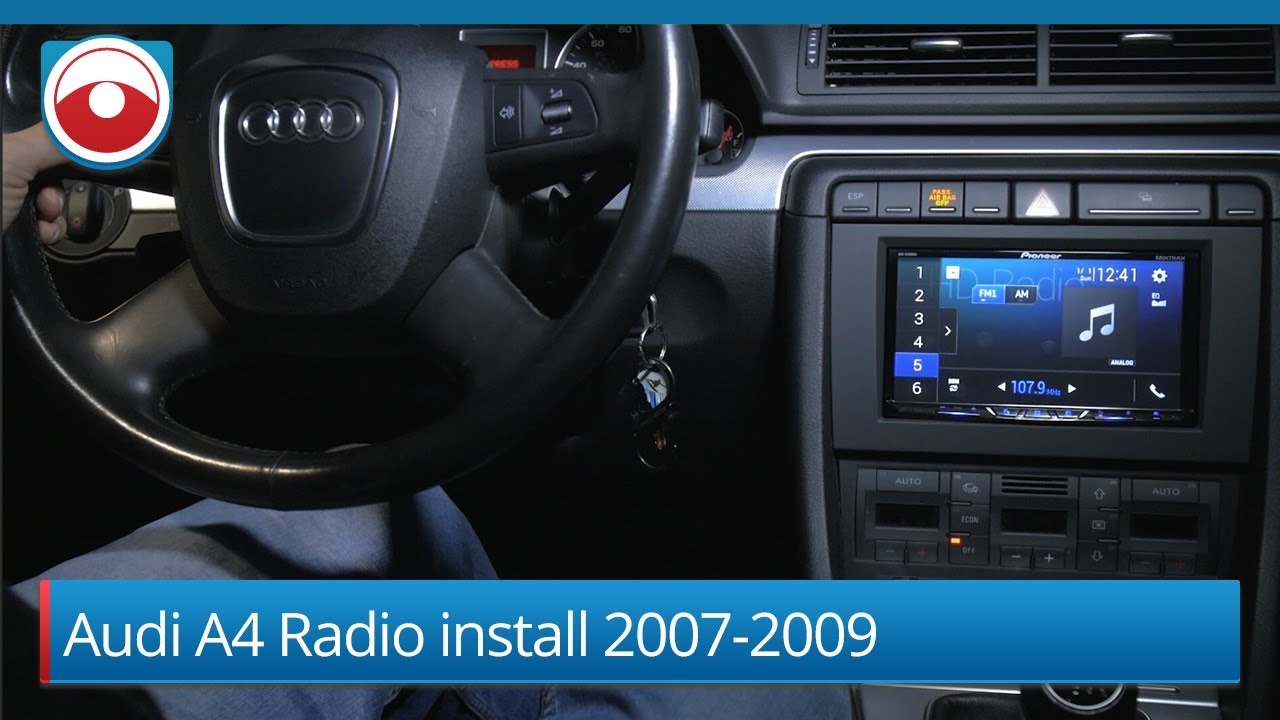

This video is in an A4 but it covers the wiring and radio cage the best of all the videos we have.

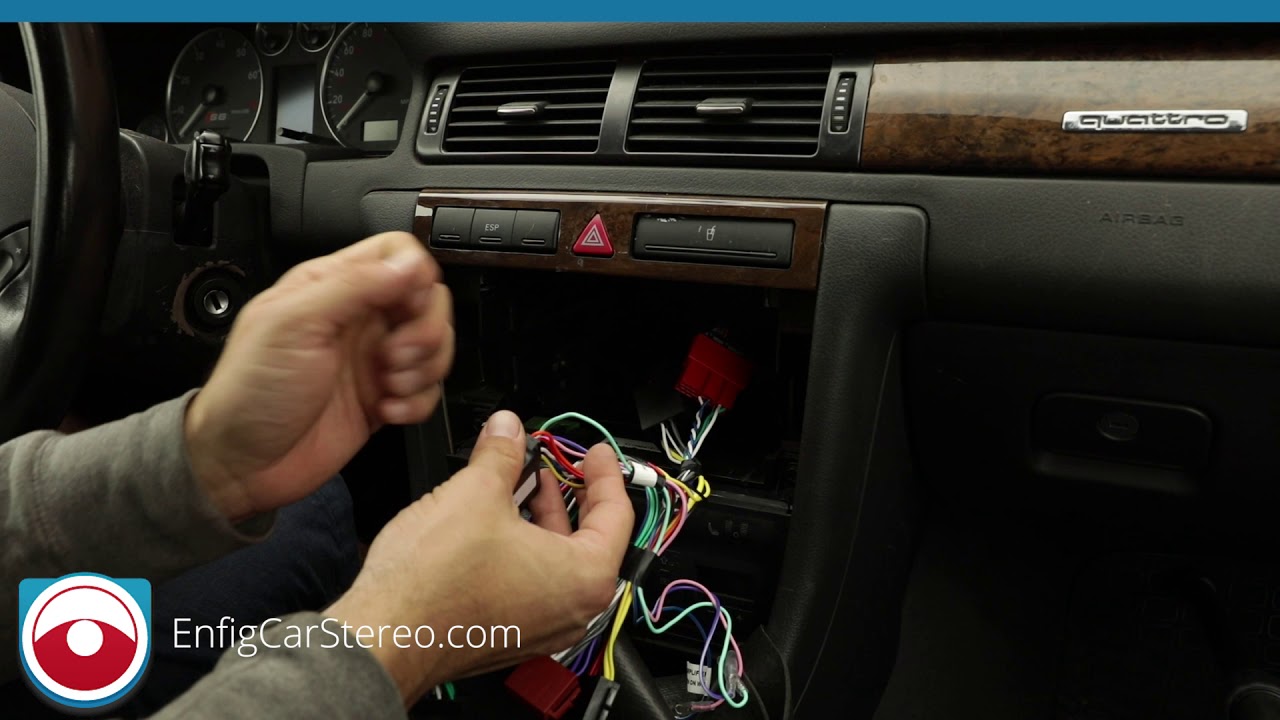

This videos is in an A6 but it covers the wiring for the SRWH-AUD2-HILO the best out of all my videos.

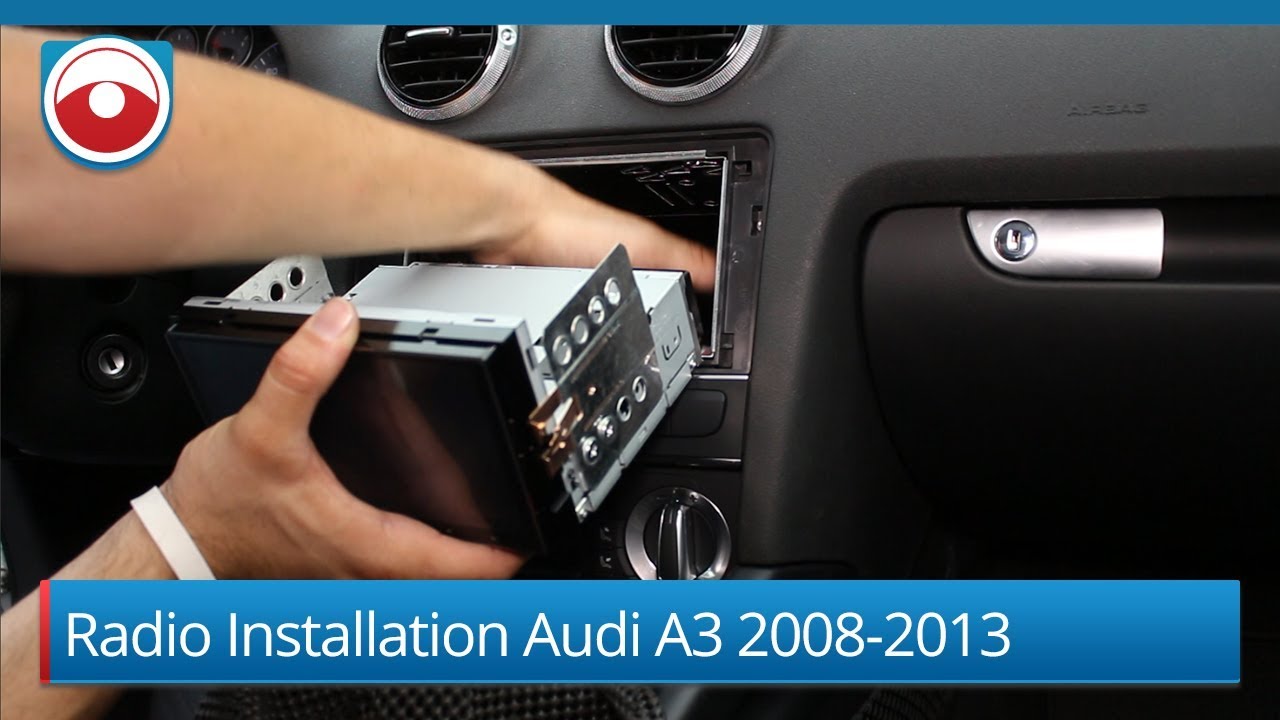

Audi A3 Radio installation video

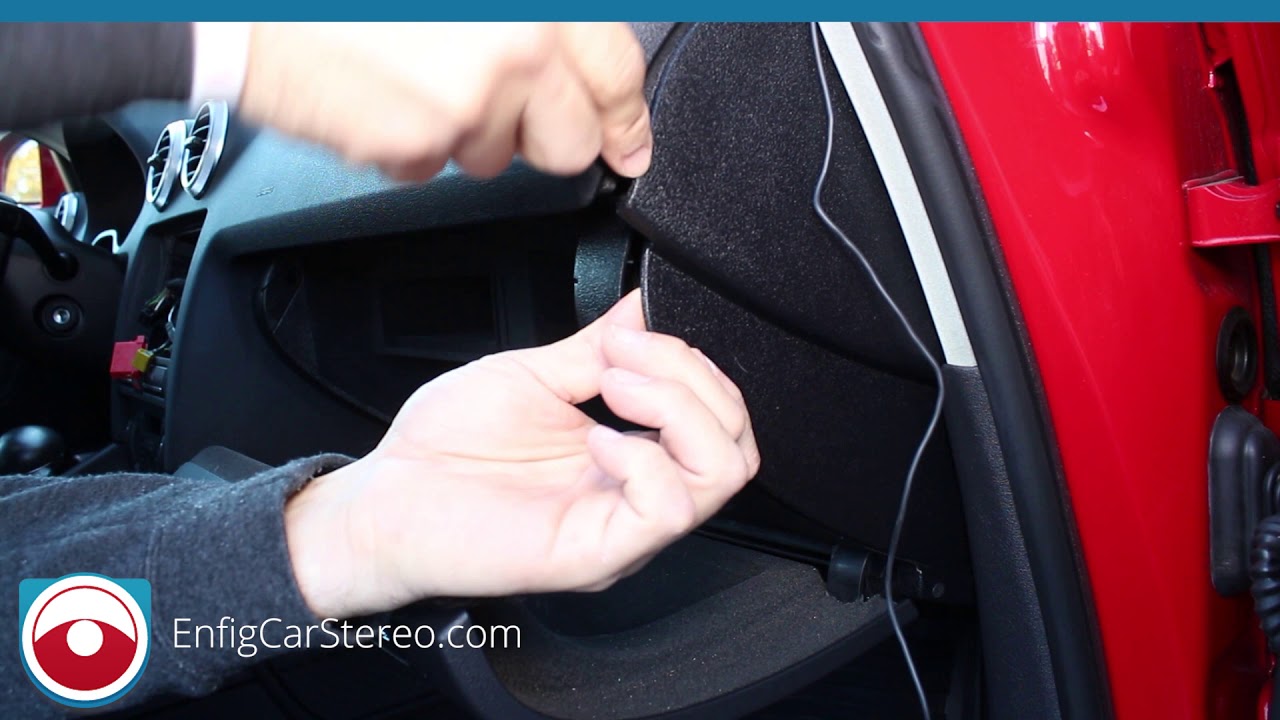

Audi A3 Custom microphone installation video

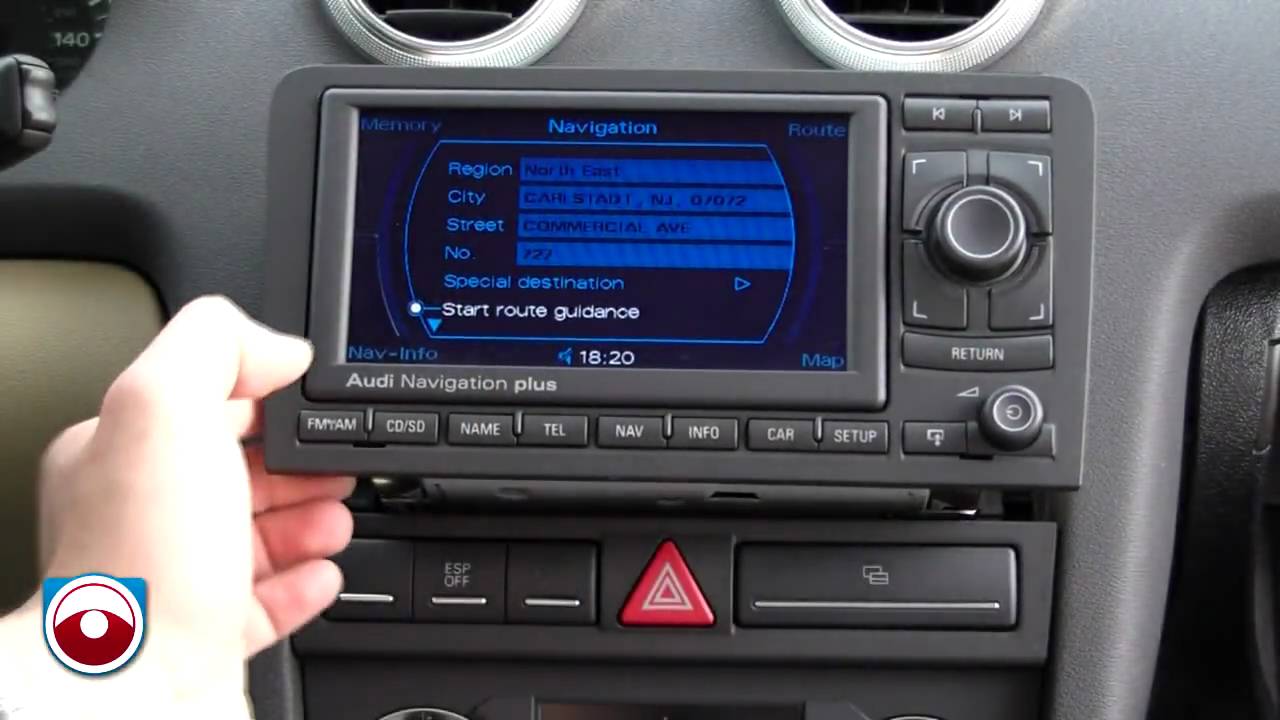

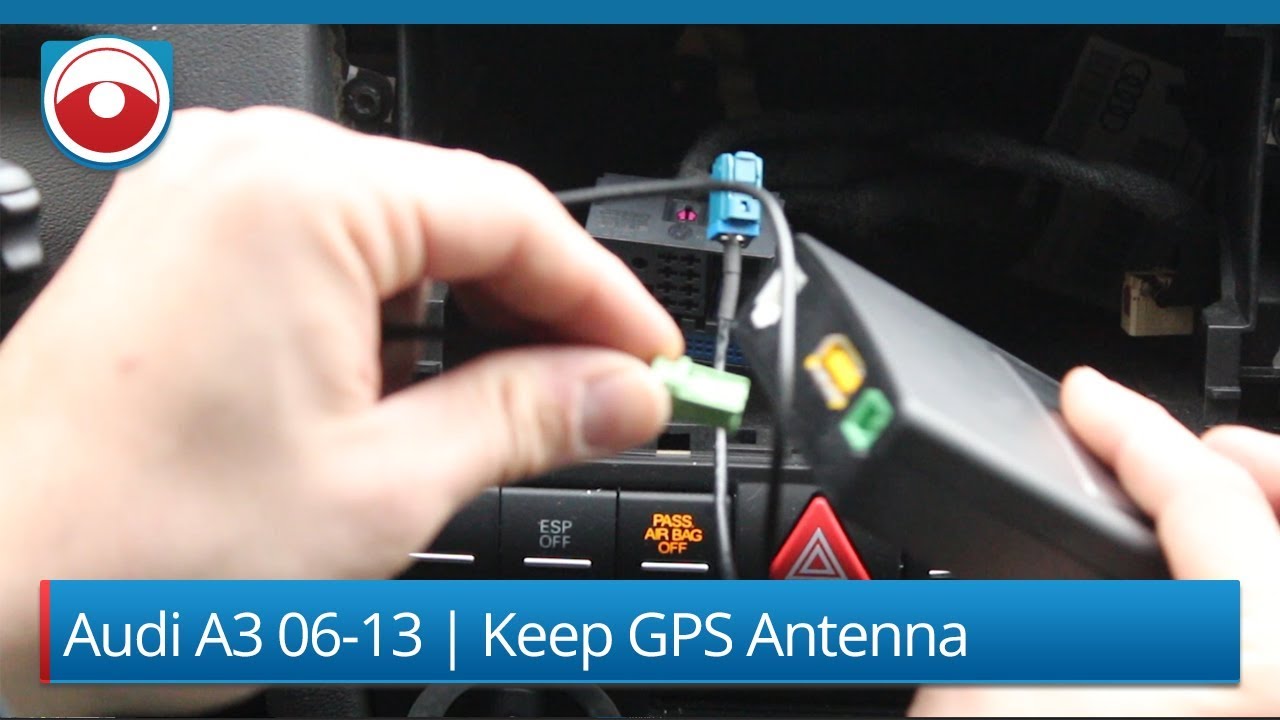

How to reuse the factory GPS antenna on cars with the RNS-E Navigation radio.



GPS antenna location on cars without RNS-E navigation radios.

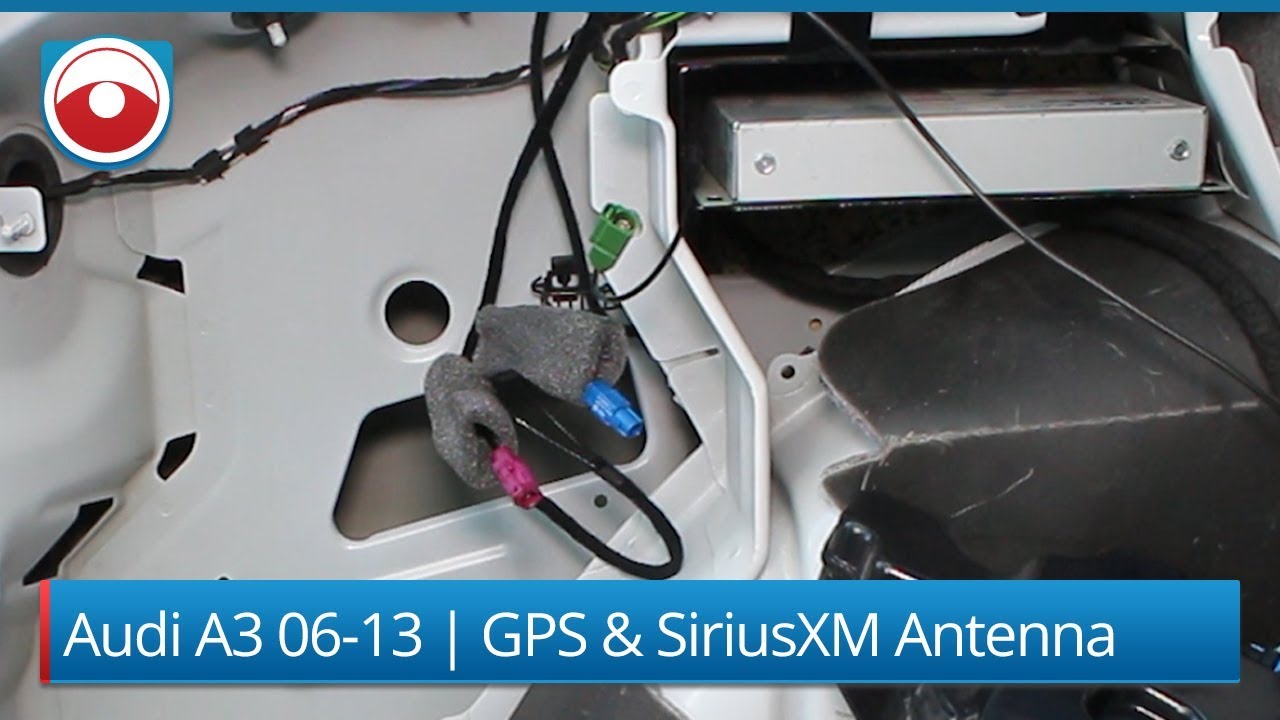

SiriusXM antenna location

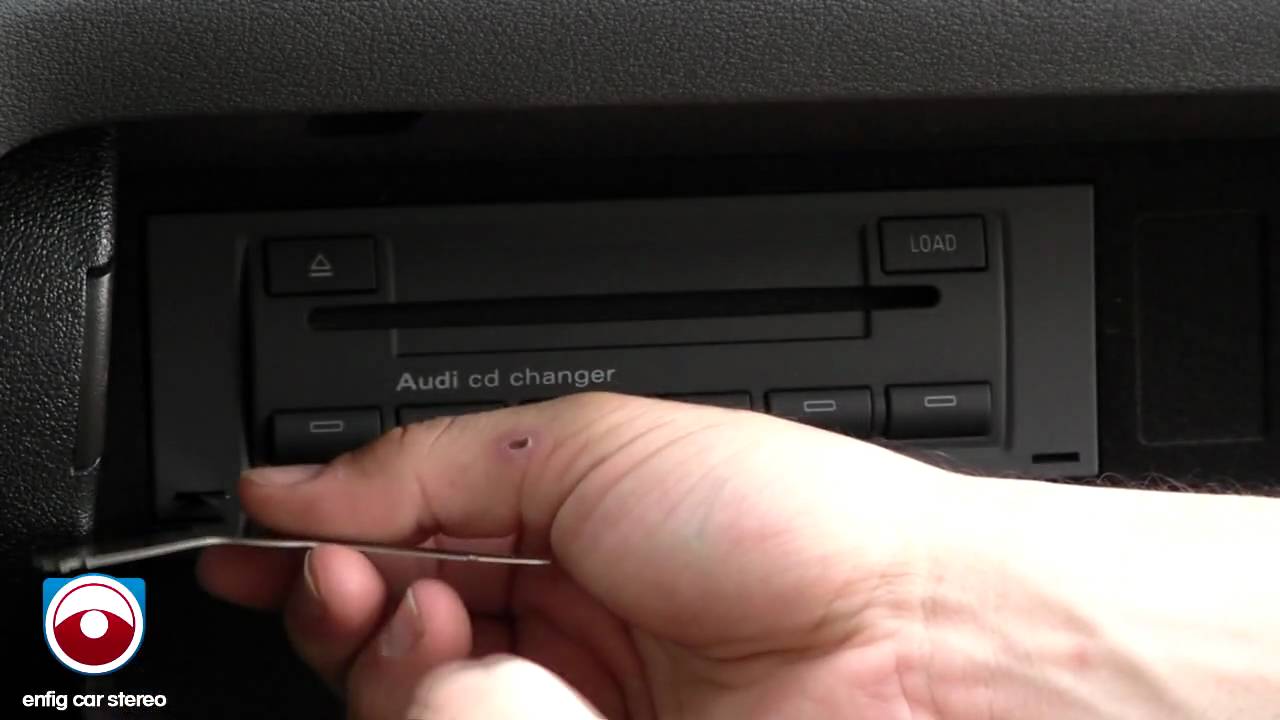

Glove Box CD changer removal video



Old Concert Radio Removal (using the old keys) Order the RRk4



Old RNS-E navigation Radio Removal (using the old keys) Order the RRk4
